Pumpkit MINIFLUX Sanitary

Branche: IndustrieBranche: CosmétiqueBranche: PharmacieBranche: ChimieBranche: Denrées alimentaires
  • .

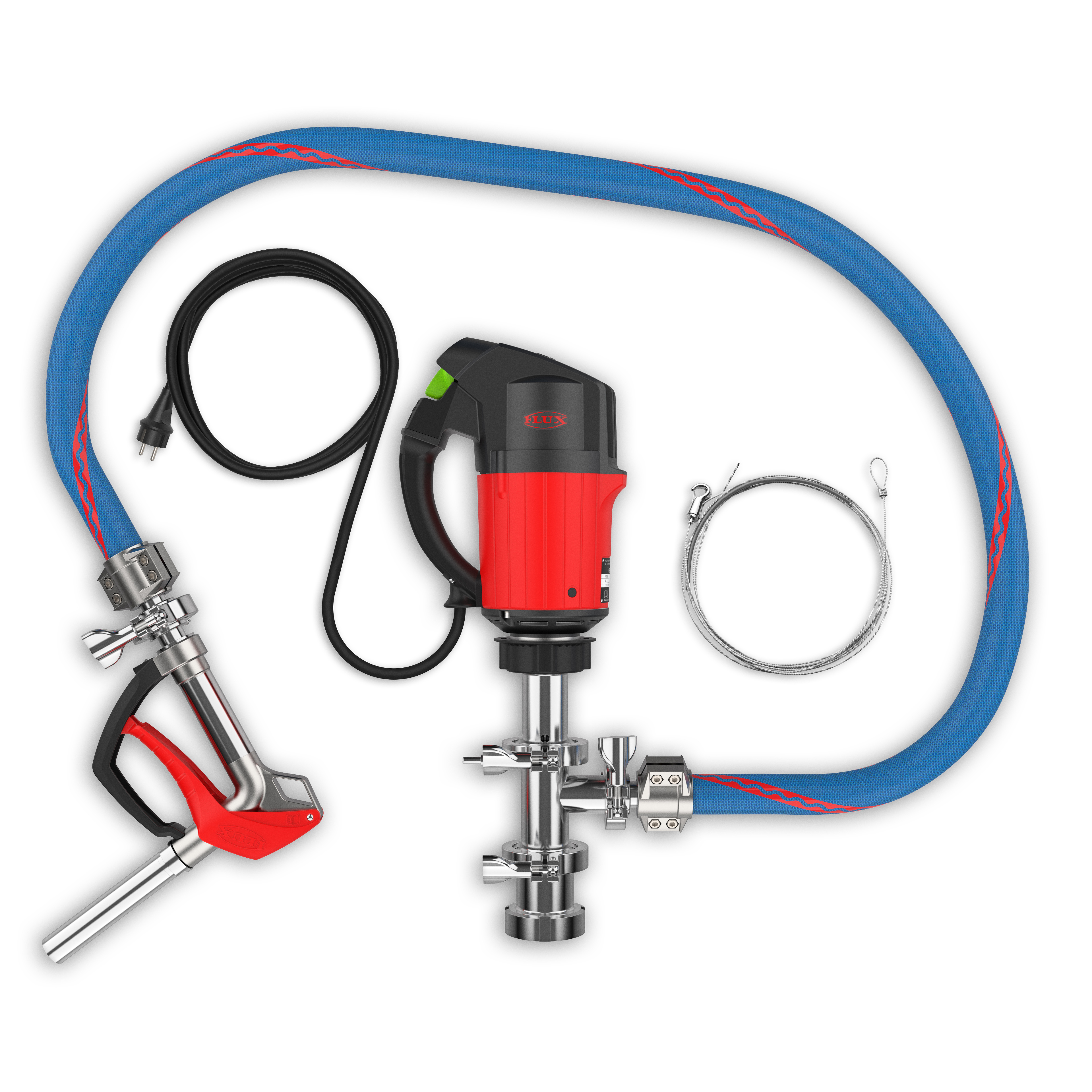

The MINIFLUX Sanitary pump sets were designed for pumping from IBCs, bag-in-box IBCs and other containers with an outlet connection at the bottom.  They are an alternative to vertical drum pumps when IBCs cannot be accessed from above or only with great effort. They are also suitable when the natural outlet of the medium via the outlet tap does not provide sufficient delivery pressure, e.g. for rapid filling or pumping into a higher container. Two collector motors are available for the pump sets: the F 458, the robust, encapsulated drum pump motor and the FEM 4070, the compact and lightweight drum pump motor.

The MINIFLUX Sanitary is also designed for use in the hygiene sector. It is suitable for food contact in accordance with EC 1935/2004 and FDA CFR 21 and can be dismantled in seconds without tools.
  • Zones d'application: FDA
  • Zones d'application: Food

Données techniques:

  • Débit: maxi. 60 l/min
  • Hauteur de refoulement: maxi. 9 mCE
  • Viscosité: mini. 1 mPas - maxi. 1000 mPas
  • Diamètre du tube extérieur: maxi. 41 mm
  • Matériaux de tube extérieur: Acier inoxydable
  • Média / Fluides: Solutions salines aqueuses, Médias facilement inflammables, Produits d'huiles minérales, Solvants
  • Joint: Lip seal (PTFE)
  • Récipient: IBC à 1000 litres, Contenants avec évacuation au sol

Caractéristiques du produit

  • For pumping from IBCs, Bag in Box IBCs and other containers with outlet connection at the bottom
  • Simple connection of the pump to the outlet via clamp connection or union nut
  • Compact design
  • Pump set up dry
  • Little contact with the medium
  • Low total weight of 1.8 kg
  • Does not need to be lifted onto containers
  • IBCs can be emptied down to a residual quantity of less than 1 % (depending on the angle of inclination)

Avantages

  • Can also be used with low ceiling heights
  • Enables pumping directly at the floor outlet, even with IBCs stacked on top of each other
  • Significantly higher flow rate and delivery pressure compared to filling at the outlet tap via the hydrostatic pressure of the medium
  • Less space required overall
  • Pumping against closed valve (e.g. nozzle, flap valve, etc.) possible
  • Conditionally suitable for dry running
  • Particularly suitable for hygienic applications
  • Suitable for food contact in accordance with EC 1935/2004 and FDA CFR 21
  • With lip seal (without mechanical seal)
  • Low dead space
  • Can be dismantled without tools, easy to clean
  • No greased seals - no risk of grease being carried over into the medium
