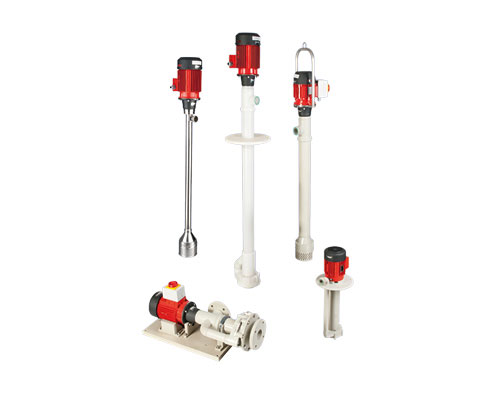

Pompes Flux pour le secteur Chimie

Chemische Industrie

L'industrie chimique est dynamique dans le domaine de l'innovation et concerne une multitude de fluides. Il est essentiel de garantir un pompage professionnel sécurisé et précis des médias présentant des viscosités différentes.

Qu'il s'agisse d'acides, de produits alkalins, de solvants explosifs ou corrosifs, des normes de sécurité spécifiques doivent être respectées dans chaque milieu. Notre compétence chez Flux est de vous fournir la solution adaptée à votre application selon les exigences des fluides les plus sensibles.

Mettez nous à l'épreuve - et vous verez : l'alchimie opèrera.

Exemples d'application :

  • Acides et bases
  • Colle
  • Eau ammoniaquée
  • Agent nettoyant
  • Liquide de freins
  • Eau déminéralisée
  • Disperçants
  • Emulsifiants
  • Acide acétique
  • Acide formique
  • Mousse anti-incendie
  • Produits chimiques photographiques
  • Hydrocarbures
  • Solutions de chlorure de sodium
  • Solutions contenant des pétroles
  • Solvants
  • Perchloréthylène
  • Détergeants
  • Silicone
  • Graisse

Descriptions des applications

Dosage précis d'huiles minérales à partir d'un IBC

Cahier des charges :
transferer une grande variété d'huiles dans une extrudeuse à l'aide d'un système de conditionnement avec préréglage de la quantité

Exigences du client :
- Précision du dosage : +/- 1%
- Débit 60 l/min
- Pression en sortie : 1 bar

Préconisation :
Pompe Vide-fûts F430S avec garniture mécanique
Moteur à commutateur F457
Débimètre FMO110 avec cadran electronique FLUXTRONIC
Relais amplificateur
Electrovanne
Interrupteur à flotteur
Matériel selectionné selon l'application décrite par le client.

Descriptif du système de conditionnement :
A partir d'une pompe vide-fût, et d'un débimètre à cadran FLUXTRONIC. FLUX conçoit un système de remplissage sur mesure offrant une solution répondant aux besoins spécifiques du client.

Après avoir préréglé la quantité désirée, la pompe vide-fûts F430 S avec garniture mécanique plongée dans l'IBC est actionnée en appuyant sur le bouton du cadran électronique. Lorsque la quantité prédéfinie est atteinte, la pompe s'arrête automatiquement (fonctionnement par lots). Le relais amplificateur FLUX FSV100 permet la mise en marche et l'arrêt de l'ensemble de remplissage.

Un deuxième IBC situé au dessus de celui recevant le système de remplissage, est équipé d'une électrovane reliée à l'interruptueur à frotteur plongé dans le 1er IBC. Ainsi celui-ci est automatiquement alimenté dès que le niveau minimum est attteint. Les système de remplissage est integré de manière permanente dans l'IBC et celui ci n'a pas besoin d'être manipuler pour le remplacer. C'est un avantage supplémentaire.



Transférer de l'acide formique à partir d'un IBC

Cahier des charges :
L'acide formique doit être transférer dans des petits fûts. Cette action est en amont de la fabrication de produits chimiques spéciaux pour les matériaux de marquage et d'étanchéité dans le domaine du batiment.

Les problèmes suivants ont été identifiés :
- prévèlement de petites quantités depuis l'IBC
- Fuite de produits par la vanne à boisseau sphérique après le prélèvement
- Pas de branchement électrique dans la zone de l'IBC

Préconisation :
Pompe-vide fût COMBIFLUX FP 314
Moteur sur batterie FBM-3100
Flexible équipé d'un anti-goutte
Matériel selectionné selon l'application décrite par le client.

Descriptif de l'utilisation du matériel préconisé:

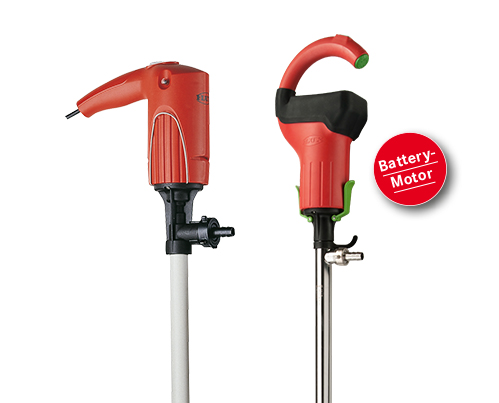

La pompe vide-fût COMBIFLUX FP 314 équipé d'un moteur sur batterie est idéale pour l'application décrite. Elle est parfaitement adaptée pour le remplissage de petites quantités. Le COMBIFLUX est plongé dans l'IBC - et le prélèvement peut débuter.

Le moteur sur batterie FBM-B 3100 peut être facilement désolidarisé du plongeur de la pompe grâce au raccord rapide. Cela permet de laisser les plongeurs dans chaque contenant et de ne coupler le moteur que là où le fluide doit être prélevé. Cette procédure est particulièrement judicieuse lorsque différents fluides sont utilisés, car le nettoyage intermédiaire n'est plus nécessaire.

Le dispositif anti-goutte sur l'extrémité du tuyau de la pompe empêche le fluide de s'égoutter.



Metering disinfectants against Legionella

Task:
Disinfectants are to be metered with a gear pump and an integrated flowmeter and transferred into a ventilation system.

Customer's requirements:
- Metering accuracy:  +/- 10 ml
- Flow rate:  5 l/h
- Application several times a day

Solution:
Flow meter FMO 102
Evaluation electronics FLUXTRONIC®
Switching amplifier
For the application designed accessories on request

Application description:
The disinfectant is pumped into the ventilation system using a gear pump; the FLUX FMO 102 flow meter and the FLUXTRONIC® evaluation electronic perform the metering.

The FM 102 oval wheel counter offers the optimal solution in this situation, because it is capable of metering pure media – whether low-viscosity or high-viscosity – very accurately.

The FLUXTRONIC® evaluation electronics with switch amlifier offers two operating modes:
1. In "normal mode" it indicates the currently flowing volume of fluid.
2. In "automatic mode (batch mode)" a preprogrammed quantity of fluid can be retrieved at the push of a button and filled semi-automatically.

Manual metering of a wide variety of solvents from drums or IBCs

Task:
A wide variety of solvents – including flammable solvents – need to be removed from 200-l standard drums quickly and be filled into various containers.

Solution:
Drum pump FP 430 S Ex with mechanical seal
Commutator motor F 460 Ex
or: Pump-kit "for universal applications"
For the application designed accessories on request

Application description:
Our drum pumps are ideal for the rapid removal of low viscosity media – including solvents. These are simply placed in the fluids to be filled and are then immediately ready for use.

Drum pump F/FP 430 S with mechanical seal is the most suitable for frequent medium changes because the mechanical seal on the shaft prevents the medium from penetrating the inner pipe. The design, with mechanical seal, means that the drum pumps can also be disassembled and cleaned quickly and easily.

In particular in the case of solvents, compliance with explosion protection requirements is also frequently necessary. We offer specially certified drum pumps with explosion-safe motors (ex-motors) for this. Our pump nozzles, attached to the end of the hose, are particularly useful here, ensuring that the medium can be metered without any problems. Of course, a corresponding explosion protection certificate is also available for the hose and pump nozzles that can be used to remove flammable solvents as well.

Filling of cleaning agents

Task:
Acids and basic cleaning agents require filling directly into sales packs.

Solution:
Drum pump F 425 S for 99,98% drum emptying
Brushless motor FBM 4000 Ex
Evaluation electrinics FLUXTRONIC®
Switching amplifier
Filling unit FAE
For the application designed accessories on request

Application description:
Up to now the IBCs have been tipped to fill the sales packs by pouring. This always leaves behind significant amounts of residue in the supply containers however. This is to be avoided in the future.

The precise quantity of the sales packs was determined using scales.

Our semi-automatic filling system consisting of F 425 S drum pump, FMC flowmeter, FLUXTRONIC® evaluation electronics, switched-mode amplifier and the FAE filling unit is now used. In this system, the precise fill quantity can be predefined and filling can be done at the touch of a button. Once the set quantity is reached, the drum pump switches off automatically. Thus, in batch operation, predefined quantities can be filled automatically several times consecutively. Scales are only necessary for random checks.

The F 425 drum pump for 99.98% drum emptying features a built-in non-return device which can be closed if required. Once the drum is empty, the pump can be removed without the medium flowing back out of the pump. With the F 425 drum pump, less than 0.05 l of residue remains in a 200 l drum, so a maximum of 0.02%. This makes tipping the container to remove any residue no longer necessary.

Additional dosing of sulphuric acid in electroplating baths

Task:
Additional doses of sulphuric acid require adding to electroplating baths from small canisters. On this occasion, the customer required a pump for filling of small quantities. Since there was no power supply present, the customer required a battery-powered pump.

Solution:
COMBIFLUX FP 314
Battery Motor FBM-B 3100
For the application designed accessories on request

Application description:
Our small COMBIFLUX FB 314 drum pumps are ideal for smaller fill quantities and for filling from containers such as canisters. A quick coupler connects the motor to the pump meaning the motor can be removed from the pump quickly and easily. A low total weight is another distinguishing feature of the COMBIFLUX, meaning less effort is needed when changing drums.

Since no electric power supply was available in this case for the motor, we were able to use our FBM-B 3100 battery motor as an alternative.

The operator simply places the COMBIFLUX FP 314 with battery motor into the relevant container and can then dispense the sulphuric acid into the various electroplating baths with speed and mobility.

For an example, see our "Product Overview" brochure on page 8.

Filling of various high-viscosity silicone pastes

Task:
Various freshly made, high-viscosity pastes require filling from mixing tanks which are not accessible from above, into 25 kg buckets.

Solution:
F 550 S TR eccentric worm-drive pump, console-mounted
Three-phase motor with speed adjustment
For the application designed accessories on request

Application description:
Our F 550 / F 560 eccentric worm-drive pumps offer the perfect conditions for low to high-viscosity media. If mixing tanks are not accessible from above, as is the case here, our F 560 TR models are used. These are positioned on a console or other devices next to the container and are connected to the bottom outlet for filling.

One of the mixers built into the containers keeps the silicone paste moving so that the pump continues to run well and, unlike with high-viscosity media, no forced feeding is necessary.

A three-phase motor with variable speed setting was used. In particular, this means that the silicone paste can be pumped gently even outside the various viscosity ranges.

Filling of silicone oils

Task:
Silicone oils, with a viscosity of 5000 to 10,000 mPas require filling into 5 l buckets from 200 l drums.

Solution:
Eccentric worm-drive pump F 550 GS
Commutator motorF 457
Hose
For the application designed accessories on request

Application description:
Eccentric worm-drive pumps from the F 550 series for industrial applications are perfect for pumping high-viscosity media such as silicone oils. The eccentric worm-drive pumps work with low turbulence, under constant pressure and ensure gentle, pulsation-free pumping.

A filling device is supplied at room temperature by the F 550 GS eccentric worm-drive pump in the gear unit design. The 5 l buckets are then filled using scales. Alternatively, a FLUX flowmeter can also be used.

In combination with FLUXTRONIC® evaluation electronics, the filling and metering process of virtually all fluids is performed with maximum precision and the greatest possible safety.

Before introducing the F 550 GS eccentric worm-drive pump, the drums first had to be heated to approx. 80 °C otherwise it would not have been possible to pump the medium. Use of the FLUX eccentric worm-drive pump renders this additional process step unnecessary.

Additional benefits are that the F 550 GS eccentric worm-drive pump is lightweight, portable and is quick and easy to disassemble.
